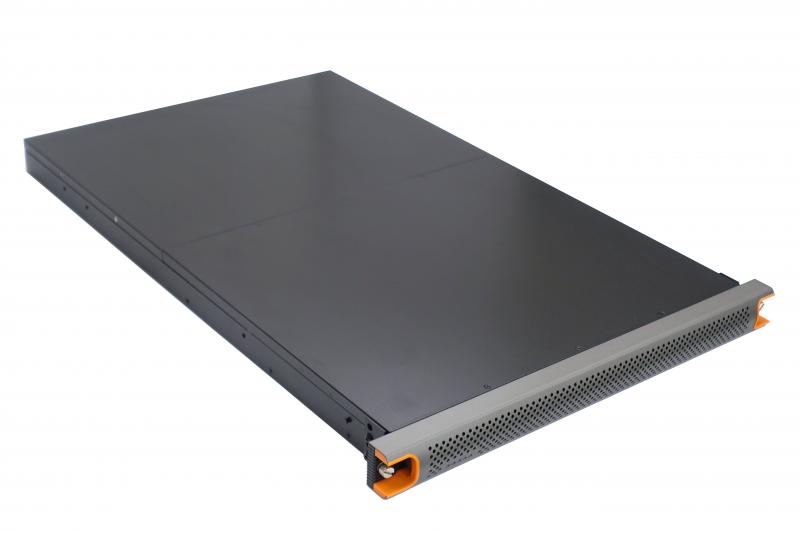

1U28HIN
 |
|
| 1U28HIN | |
|---|---|
| Form Factor (H) x (W) x (D) | 1RU 8-Bay, 19" Rackmount Chassis 1.71" x 17.2" x 27.55" 43.5 mm x 437 mm x 700 mm |
| Drive Bay | 8x 3.5” Hot Swappable HDD Bracket 2x 2.5" Internal HDD Bracket (up to 9.5 mm high) |
| Mother Board | Up to ATX 12" x 9.6" (305 mm x 244 mm) |
| Processor | Dual or Single Intel® or AMD® Processors |
| Control Panel | 1x System Power Button 1x System Reset Button 1x USB 2.0 Port |
| Indicator | 2x Network Activity LED 1x Power on LED 1x Power Fail LED 1x Fan Failed LED 1x HDD Access LED 1x HDD Status LED per HDD 1x HDD Failed LED per HDD |
| Expansion Slot | 1x Standard Expansion Slot |
| Expander Backplane | 2x 3.5" 6Gbps SAS/SATA HDD Backplane mini SAS Connector (SFF-8087 including SGPIO) |
| Fan Module | 4x Non-Hot Swap Dual-Rotor Cooling Fan |
| Electrical Requirement | High-efficiency 400w (1+1) Redundant Power Supply W/ PFC, AC 90~264V Full Range, 47Hz~63Hz |
| Environmental | Operating: 10˚C~35˚C (50˚F~94.9˚F) Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing |
| Weight | Enclosure: 15kg (33Ibs) Packaged: 23kg (51Ibs) (Hard Drive and Slide Rail Not Included) |
| Package Dimension (H) x (W) x (D) | 241 mm × 591 mm × 881 mm |
| 销售码 | 说明 | 建议售价 (USD) | ||
|---|---|---|---|---|
| 4056 Fan Module | FMA-4056-ND | 40 x 40 x 56 mm | Call |  |
| 1U Front Bezel | FP1CSB-IV | 1U | Call |  |
| 27" Ball Bearing Slide | SLR-DS-2701 | 27", Ball Bearing | Call |  |
| Data Sheet | 1.0 | 530KB | 2017-09-20 |  |
| 1U28HIN-17419 | 1x 1RU, 19" Rackmount Chassis 8x 3.5” Internal HDD Bracket 2x 2.5" Internal HDD Bracket 1x 400w (1+1) Redundant Power Supply 5x 40mm Non-Hot Swap Dual-Rotor Cooling Fan 2x 3.5" HDD Backplane 2x mini SAS Cable |  |
