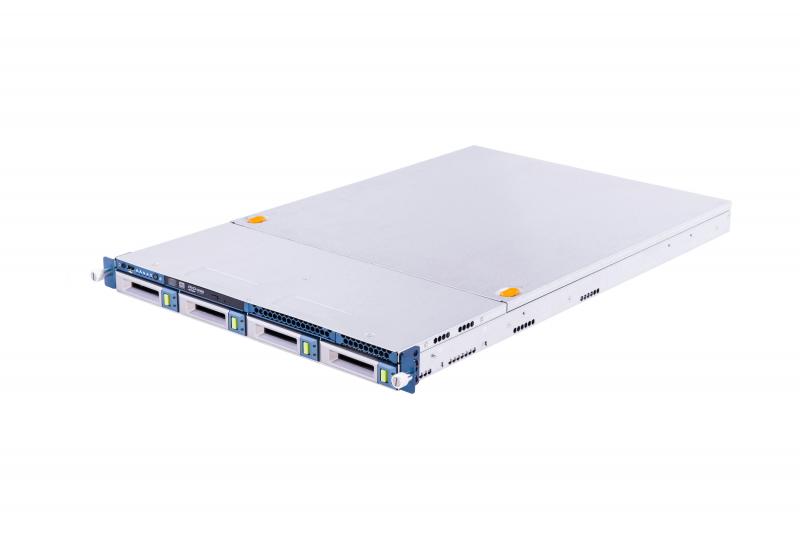

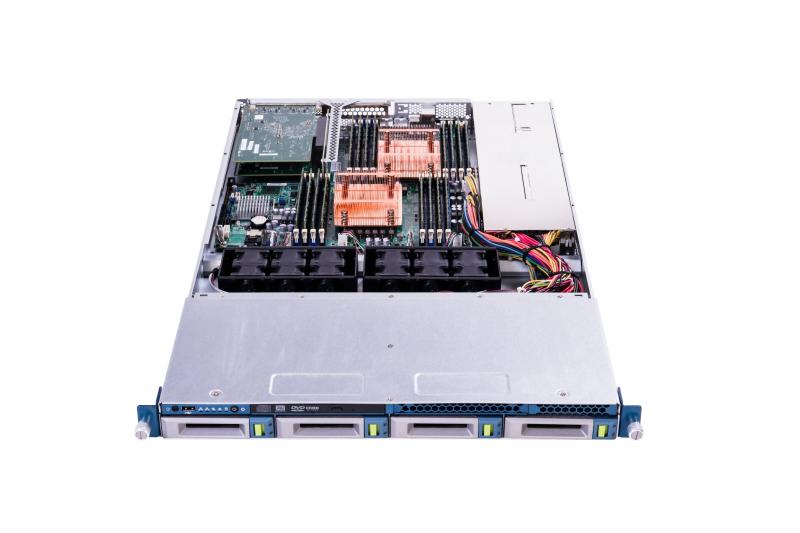

1U04BSR
 |
|
| 1U04BSR | |
|---|---|
| Form Factor (H) x (W) x (D) | 1RU 4-Bay, 19" Rackmount Chassis 1.71" x 17.2" x 27.59" 43.5 mm x 437 mm x 700.7 mm |
| Drive Bay | 4x 3.5” Hot Swappable HDD Caddy 2x 2.5" Internal HDD Bracket (up to 9.5 mm high) 1x Ultra Slim Type ODD (Option) |
| Mother Board | Up to SSI EEB 12" x 13" (305 mm x 330 mm) |
| Processor | Dual or Single Intel® or AMD® Processors |

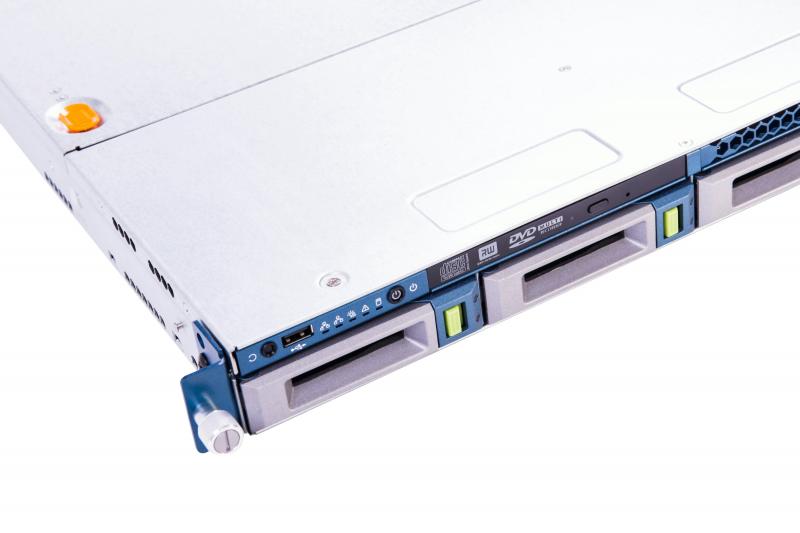

| Control Panel | 1x System Power Button 1x System Reset Button 1x USB 2.0 Port |
| Indicator | 2x Network Activity LED 1x Power on LED 1x Power Fail LED 1x Fan Failed LED 1x HDD Access LED 1x HDD Status LED per HDD 1x HDD Failed LED per HDD |
| Expansion Slot | 2x Standard Expansion Slot 1x Low Profile Expansion Slot |
| Expander Backplane | 1x 3.5" 6Gbps SAS/SATA HDD Backplane mini SAS Connector (SFF-8087 including SGPIO) |
| Fan Module | 6x Non-Hot Swap Dual-Rotor Cooling Fan |
| Electrical Requirement | High-efficiency 650w (1+1) Redundant Power Supply W/ PFC, AC 90~264V Full Range, 47Hz~63Hz |
| Environmental | Operating: 10˚C~35˚C (50˚F~94.9˚F) Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing |
| Weight | Enclosure: 13kg (29Ibs) Packaged: 21kg (46Ibs) (Hard Drive and Slide Rail Not Included) |
| Package Dimension (H) x (W) x (D) | 241 mm × 591 mm × 881 mm |
| 销售码 | 说明 | 建议售价 (USD) | ||
|---|---|---|---|---|
| 27" Ball Bearing Slide | SLR-DS-2701 | 27", Ball Bearing | Call |  |
| 3.5" Hard Drive Caddy | HDC35-002-BL | 3.5", Blue | Call |  |
| 3.5" Front Cover | HDC35-901-GR | 3.5", Green | Call |  |
| 4056 Fan Module | FMA-4056-ND | 40 x 40 x 56 mm | Call |  |
| 1U Front Bezel | FP1CSB-IV | 1U | Call |  |
| Ultra Slim Type DVD | ODD-S95-S | DVD/CD-Rewritable Drive | Call |  |
| PCIe Riser Card | RC-1U16-1S-A | 1U, 1Slot PCIe 16x | Call |  |
| 2.5 inch HDD Converter | HD-CVR-03 | 6Gb/s, SAS/SATA/SSD | Call |  |
| Data Sheet | 5.0 | 342KB | 2013-08-23 |  |
| 1U04BSR-43901 | 1x 1RU, 19" Rackmount Chassis 4x 3.5” Hot Swappable HDD Caddy 2x 2.5" Internal HDD Bracket 1x 400w Single Power Supply 6x Non-Hot Swap Dual-Rotor Cooling Fan 2x 3.5" HDD Backplane (SAS/SATA 7pin Connector) |  |
| 1U04BSR-73902 | 1x 1RU, 19" Rackmount Chassis 4x 3.5” Hot Swappable HDD Caddy 2x 2.5" Internal HDD Bracket 1x 650w (1+1) Redundant Power Supply 6x Non-Hot Swap Dual-Rotor Cooling Fan 2x 3.5" HDD Backplane (SAS/SATA 7pin Connector) | |
| 1U04BSR-23031 | 1x 1RU, 19" Rackmount Chassis 4x 3.5” Hot Swappable HDD Caddy 2x 2.5" Internal HDD Bracket 1x 650w (1+1) Redundant Power Supply 6x Non-Hot Swap Dual-Rotor Cooling Fan 1x 3.5" HDD Backplane (SFF-8087 Connector) | |
