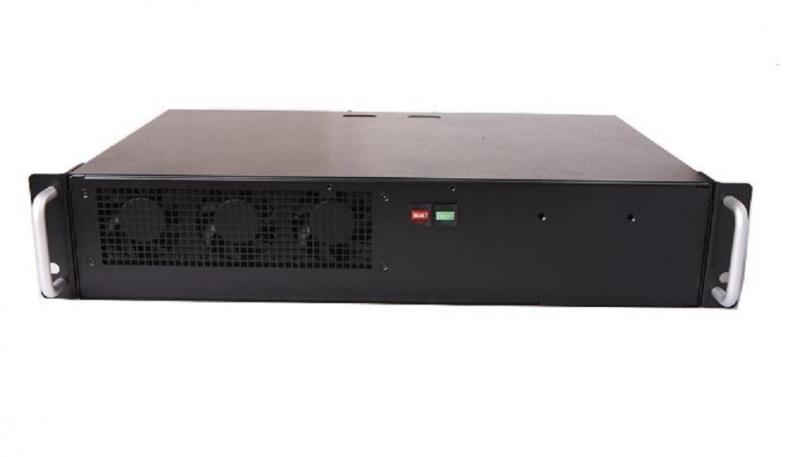

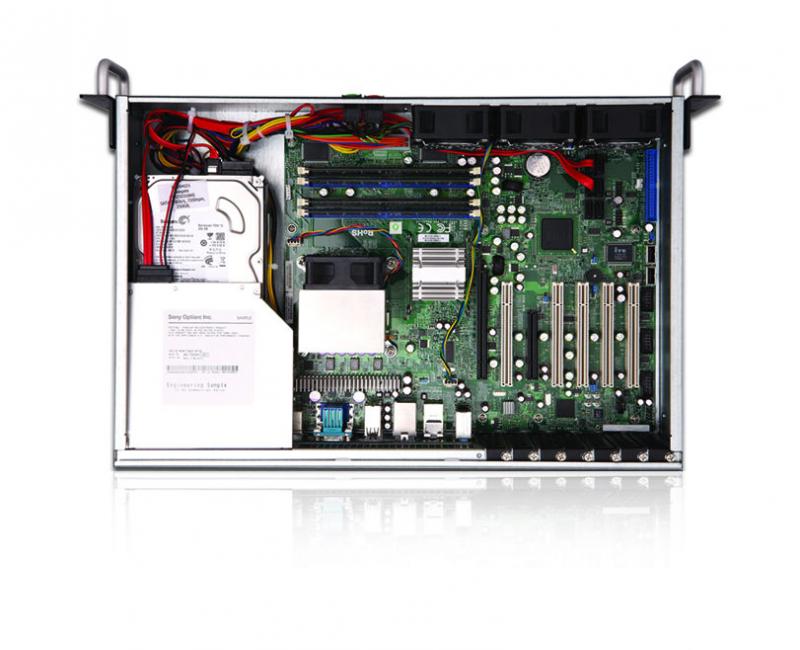

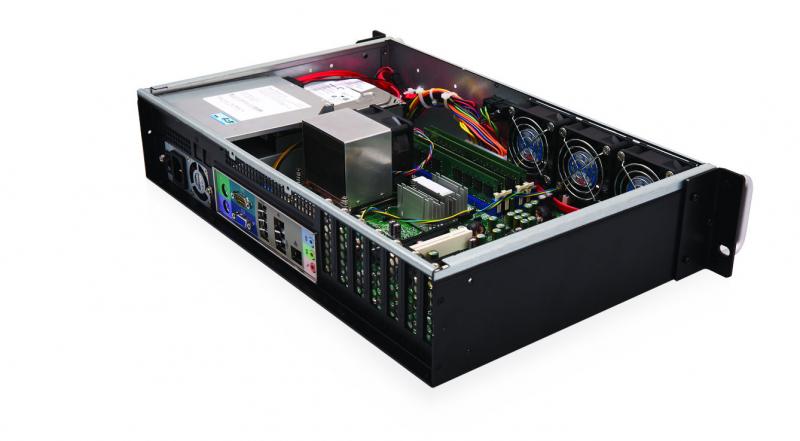

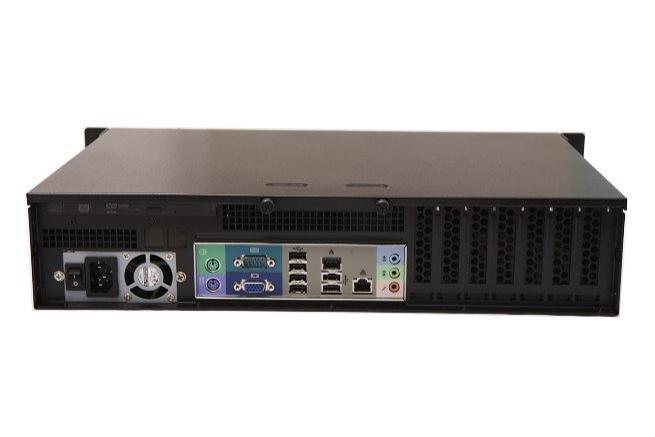

2U11IPC
 |
|
| 2U11IPC | |
|---|---|
| Form Factor (H) x (W) x (D) | 3.47" x 17.2" x 11.81" 88.1 mm x 437 mm x 300 mm |
| Drive Bay | 1x 3.5" or 2x 2.5" Fixe HDD Bracket 1x Ultra Slim Type ODD (Option) |
| Mother Board | Up to ATX 12" x 9.6" (305mm x 244mm) |
| Processor | Single Intel® or AMD® Processor |
| Control Panel | 1x System Power Button 1x System Reset Button |
| Indicator | 1x Power Status LED 1x HDD Active LED |
| Expansion Slots | 7x Low Profile Expansion Slot |
| Fan Module | 3x Non-Hot Swap Cooling Fan |
| Electrical Requirement | High-efficiency 400w Single Power Supply W/ PFC, AC 100 ~ 240V Full Range, 50Hz ~ 60Hz |
| Environmental | Operating: 10˚C~40˚C (50˚F~104˚F), 8%~90% Non-condensing Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~95% Non-condensing |
| 销售码 | 说明 | 建议售价 (USD) | ||
|---|---|---|---|---|
| Ultra Slim Type DVD | ODD-S95-S | DVD/CD-Rewritable Drive | Call |  |
| 2.5 inch HDD Converter | HD-CVR-03 | 6Gb/s, SAS/SATA/SSD | Call |  |
| Data Sheet | 3.0 | 195KB | 2013-05-09 |  |
| 2U11IPC-30911 | 1x 2RU, 19" Rackmount Chassis 1x 3.5” HDD Bracket 1x 250w Single Power Supply 3x 60 mm Fixed Fan Module |  |
| 2U11IPC-10909 | 1x 2RU, 19" Rackmount Chassis 1x 3.5” HDD Tray 1x 400w Single Power Supply 3x 60 mm Fixed Fan Modules | |
| 2U11IPC-50906 | 1x 2RU, 19" Rackmount Chassis 1x 3.5” HDD Tray 1x 400w Single Power Supply 3x 60 mm Fixed Fan Modules | |
