2U12SSR
 |
|
| 2U12SSR | |
|---|---|
| Form Factor (H) x (W) x (D) | 2RU 12-Bay, 19" Rackmount Chassis 3.47" x 17.2" x 25.5" 88.1 mm x 437 mm x 647.7 mm |
| Drive Bay | 12x 2.5" Hot Swappable HDD Caddy 1x 2.5" Internal HDD Bracket (support 2x 2.5" HDD) 1x 5.25" ODD (Option) 1x Ultra Slim Type DVD (Option) 1x Slim Type FDD (Option) |
| Mother Board | Up to SSI EEB 12" x 13" (305 mm x 330 mm) |
| Processor | Dual or Single Intel® or AMD® Processors |
| Control Panel | 1x System Power Button 1x System Reset Button 1x Alarm Release Button 1x USB 2.0 Port |
| Indicator | 1x Power Status LED 2x Network Activity LED 1x Overheat LED 1x Fan Failed LED 1x HDD Status LED per HDD 1x HDD Failed LED per HDD 1x Fan Operated LED per Fan Module 1x Fan Failed LED per Fan Module |
| Expansion Slot | 7x Low Profile Expansion Slot or 3x Standard Expansion Slot |
| Expander Backplane | 1x 2.5" 6Gbps SAS/SATA HDD Backplane mini SAS Connector (SFF-8087 including SGPIO) |

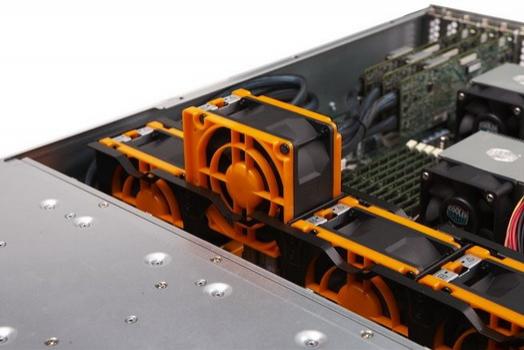

| Fan Module | 4x 80 mm Hot Swappable Fan Module |
| Electrical Requirement | High-efficiency 720w (1+1) Redundant Power Supply W/ PFC, AC 90~264V Full Range, 47Hz~63Hz |
| Monitor and Alarm | Overheat Monitoring and Warning System Fan Module Status Monitoring and Warning Power Supply Unit Status Monitoring and Warning HDD Status Monitoring and Warning |
| Environmental | OOperating: 10˚C~35˚C (50˚F~94.9˚F) Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing |
| Weight | Enclosure: 16kg (35Ibs) Packaged: 24kg (53Ibs) (Hard Drive and Slide Rail Not Included) |
| Package Dimension (H) x (W) x (D) | 291 mm × 591 mm × 881 mm |
| 销售码 | 说明 | 建议售价 (USD) | ||
|---|---|---|---|---|
| 27" Ball Bearing Slide | SLR-DS-2701 | 27", Ball Bearing | Call |  |
| 2.5" Hard Drive Caddy | HDC25-002-BL | 2.5", Blue | Call |  |
| 2.5" Front Cover | HDC25-901-GR | 2.5", Green | Call |  |
| 8038 Fan Module | FMA-8038-SU | 80 x 80 x 38 mm | Call |  |
| 8038 Fan Module Base Kit | FMBA-8038-A | 4 x 8038 Fan Module | Call |  |
| 2U Front Bezel | FP2BSB-ZV | 2U, Dust proof filter | Call |  |
| Ultra Slim Type DVD | ODD-S95-S | DVD/CD-Rewritable Drive | Call |  |
| PCIe Riser Card | RC-1U16-1S-A | 1U, 1Slot PCIe 16x | Call |  |
| 720w Power Module | PMU-720Y2-2721 | 720w | Call |  |
| Data Sheet | 5.0 | 3MB | 2015-09-21 |  |
| 2U12SSR-55389 | 1x 2RU, 19" Rackmount Chassis (7x Low Profile Expansion Slot) 12x 2.5” Hot Swappable HDD Caddy 1x 2.5" Internal HDD Bracket 1x 510w Single Power Supply 4x 80mm Hot Swappable Fan Module 1x 2.5" HDD Backplane 3x mini SAS Cable |  |
| 2U12SSR-55388 | 1x 2RU, 19" Rackmount Chassis (3x Standard Expansion Slot) 12x 2.5” Hot Swappable HDD Caddy 1x 2.5" Internal HDD Bracket 1x 510w Single Power Supply 4x 80mm Hot Swappable Fan Module 1x 2.5" HDD Backplane 3x mini SAS Cable | |
