T108BSR
 |
|
| T108BSR | |
|---|---|

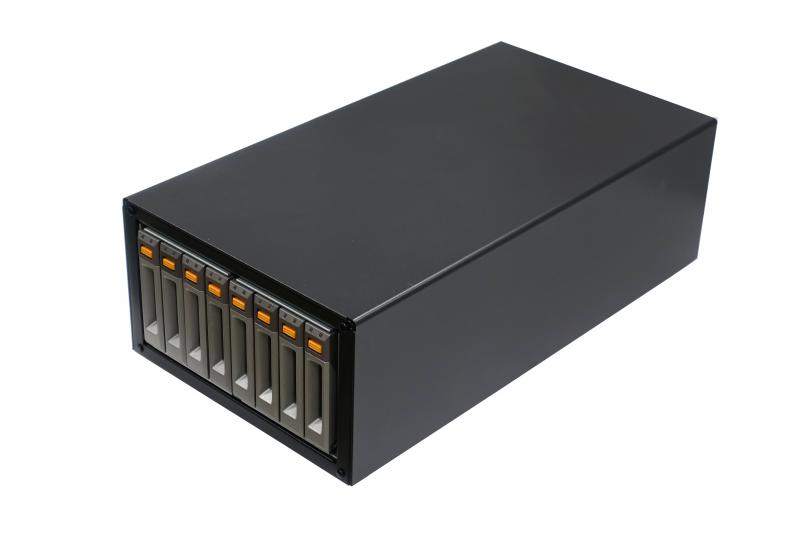

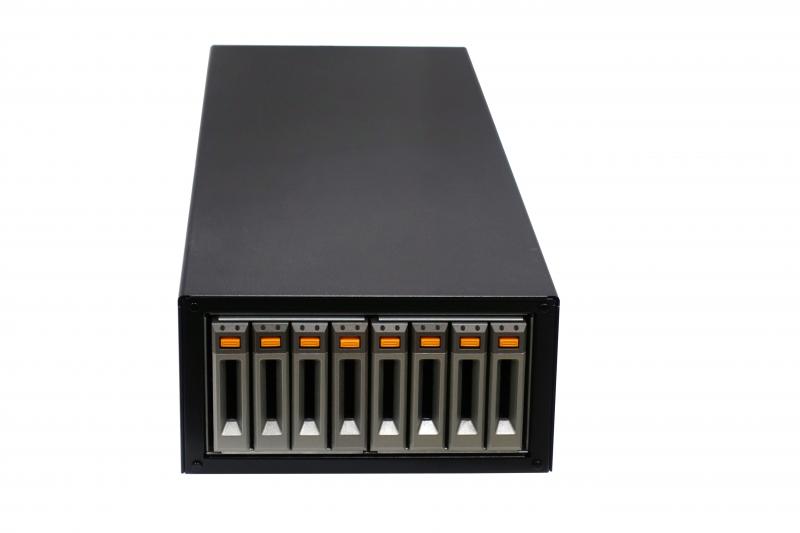

| Form Factor (H) x (W) x (D) | Tower Chassis, 8-Bay 6.24" x 10.2" x 18.95" 158.5 mm x 259 mm x 481.2 mm |

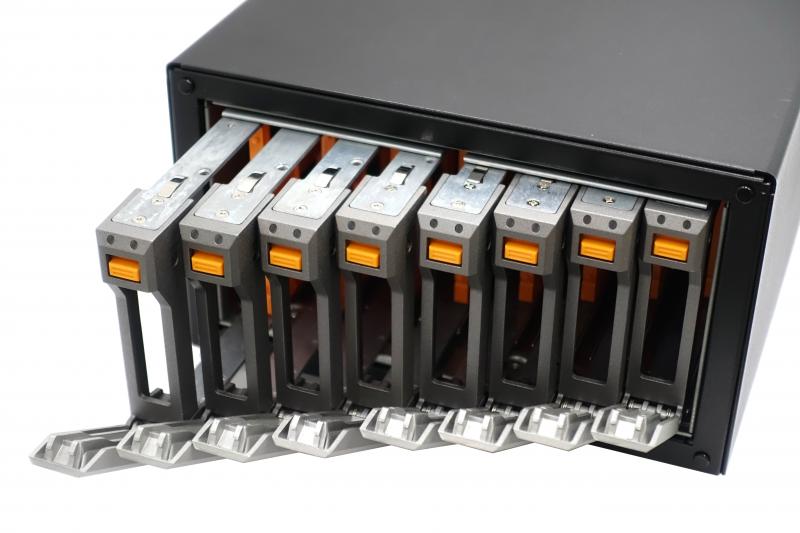

| Drive Bay | 8x 3.5” Hot Swappable HDD Caddy |
| Mother Board | Up to micro ATX 9.6" x 9.6" (244 mm x 244 mm) |
| Processor | Single Intel® or AMD® Processors |
| Control Panel | 1x System Power Button 1x System Reset Button |
| Indicator | 1x Power on LED 1x HDD Access LED 1x HDD Status LED per HDD 1x HDD Failed LED per HDD |
| Expansion Slot | 4x Standard Expansion Slot |

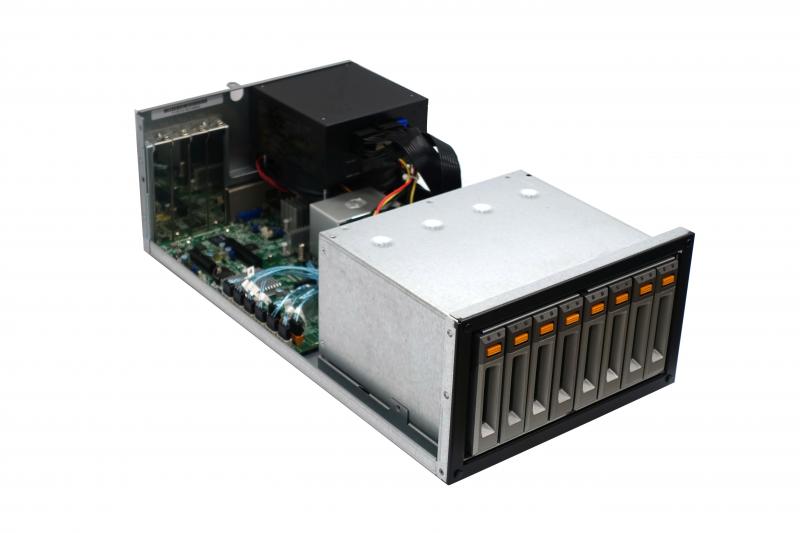

| Expander Backplane | 2x 3.5" 6Gbps SAS/SATA HDD Backplane mini SAS Connector (SFF-8087 including SGPIO) |
| Fan Module | 1x 120 mm Cooling Fan |
| Electrical Requirement | High-efficiency 500w Power Supply W/ PFC, AC 90~264V Full Range, 47Hz~63Hz |
| Environmental | Operating: 10˚C~35˚C (50˚F~94.9˚F) Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing |
| Weight | Enclosure: 11kg (24Ibs) Packaged: 15kg (33Ibs) (Hard Drive and Slide Rail Not Included) |
| Package Dimension (H) x (W) x (D) | 250 mm × 380 mm × 610 mm |
| 销售码 | 说明 | 建议售价 (USD) | ||
|---|---|---|---|---|
| 3.5" Hard Drive Caddy | HDC35-002-BL | 3.5", Blue | Call |  |
| 3.5" Hard Drive Caddy | HDC35-002-BR | 3.5", Brown | Call |  |
| 3.5" Hard Drive Caddy | HDC35-001-BL | 3.5", Blue | Call |  |
| 3.5" Hard Drive Caddy | HDC35-001-BR | 3.5", Brown | Call |  |
| 3.5" Front Cover | HDC35-901-GR | 3.5", Green | Call |  |
| Data Sheet | 1.0 | 503KB | 2017-09-21 |  |
| T108BSR-45238 | 1x Tower Chassis 8x 3.5” Hot Swappable HDD Caddy 1x 500w Single Power Supply 2x 3.5" HDD Backplane |  |
