2U02NENV
 |
|
| Physical Architecture | |
|---|---|
| Enclosure Form Factor | 2RU, 19" Rackmount Chassis |
| Chassis Dimension | 28.5" (D) × 17.2" (W) × 3.5" (H) |
| System Architecture | |
| Mother Board | 2x DP Xeon® Server Motherboards (1 for each node) |
| Processor | 4x 1366-pin LGA Socket (2 for each node) Support Intel® Xeon® Processors 5500/5600 Series |
| QPI | Up to 6.4 GT/s |
| Chipset | Dual Intel® 5520 (Tylersburg) Chipsets Intel® I/O Controller Hub ICH10R + 2x IOH-36D |
| System Memory | Up to 24x DDR3 DIMM Sockets (12 for each node) Support for 800/1066/1333 MHz DIMM Supports up to 384 GB 1333 / 1066 / 800MHz DDR3 ECC Registered Memory Supports up to 196 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered Memory |
| Drive Bay | |
| Hard Disk Drive | 4x Fixed Anti-Vibration HDD Bracket Supports up to 4x 3.5" SATA/SAS HDD (2 for each node) Enterprise SATA HDD only Recommended |
| SAS | Support 6Gb/s SAS Interface |
| SATA | Support 3Gb/s SATA Interface |
| Storage Features | |
| Storage | mini SAS port via LSI 6Gbps SAS 2008 SATA 3Gbps Ports via Intel ICH10R with Intel® Embedded Server RAID Technology |
| RAID Level | SAS: RAID 0, 1, 10 support, RAID 5 support (optional) SATA: RAID 0, 1, 5, 10 support (Windows), RAID 0, 1, 10 support (Linux) |
| Front Panel | |
| Front Control Panel | 2x System Power Button 2x System Reset Button |
| Indicator | 2x Power Status LED 2x Fan Failed LED |

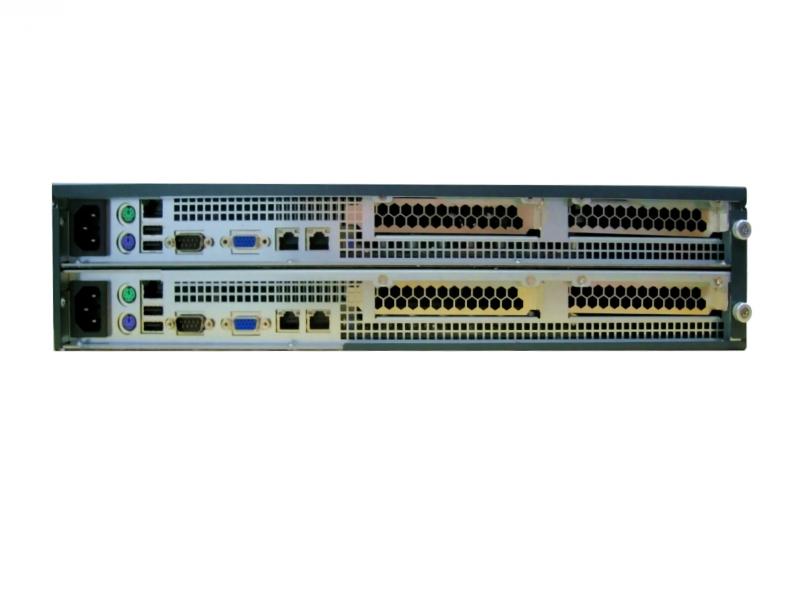

| Rear Panel | |
| Expansion Slot | 4x Standard PCIe 8x Gen 2 Slot (2 for each node) |
| I/O Port | 2x External DB-9 Serial Port 4x RJ-45 LAN Ports (stacked) 2x RJ-45 Management LAN Port 4x USB 2.0 Port 2x VGA Port 4x PS/2 Keyboard and Mouse Port |
| System Cooling | |
| System Fan Module | 12x 4-Pin PWM Cooler Fan (6 for each node) |
| Power Configurations | |
| Electrical / Requirements | 2x High-efficiency 400w (1+1) Redundant Power Supply (1 for each node) W/ PFC, AC 100 ~ 240V Full Range, 50Hz ~ 60Hz |
| Management | |
| System Configurations | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Environmental | |
| Temperature Range | Operating: 10˚C~40˚C (50˚F~104˚F) Non-operating: -40˚C~70˚C (-40˚F~158˚F) |
| Humidity Range | Operating: 8%~90% Non-condensing Non-operating: 5% ~95% Non-condensing |
| Shipping Information | |
| Net Weight | 26kg |
| Gross Weight | 32.5kg |
| Package Dimension | 881mm (D) × 591mm (W) × 360mm (H) |
| 销售码 | 说明 | 建议售价 (USD) | ||
|---|---|---|---|---|
| 27" Ball Bearing Slide | SLR-DS-2701 | 27", Ball Bearing | Call |  |
| 4028 Fan Module | FMA-4028-ND | 40 x 40 x 28 mm | Call |  |
| 4028 Fan Module | FMA-4028-SU | 40 x 40 x 28 mm | Call |  |
| PCIe Riser Card | RC-1U16-1S-A | 1U, 1Slot PCIe 16x | Call |  |
| 400w Power Module | PMU-400Z2-6400 | 400w | Call |  |
| Data Sheet | 1.0 | 414KB | 2013-05-09 |  |

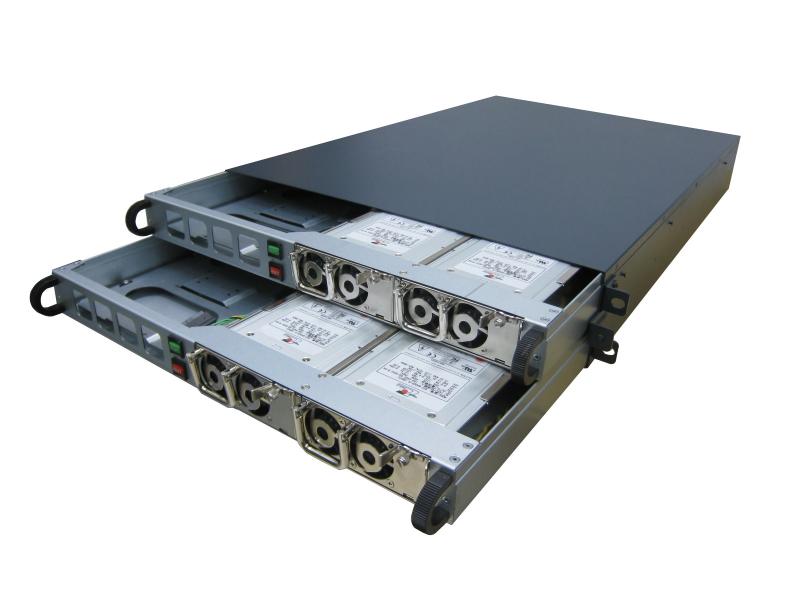

| 2U02NENV-76543 | 1x 2RU, 19" Rackmount Envelope 1x Front Bezel 2x 1RU Server (1U02BSR-34567) 1U02BSR-34567 Integrated System Components 1x DP Xeon® Server Motherboard 2x 3.5” Fixed HDD Caddy 1x 400w (1+1) Redundant Power Supply 6x Non-Hot Swap Cooling Fans 2x PCIe Riser Card Kits |  |
